mini electric DC cylinder wire connection SMD vibration Motor

Basic Parameter:

Model	S3070L-300980720-2202
Pic
size	11*4.6*3.6mm
voltage	2.7V
speed	12500±2500rpm
current	80mA Max
vibration	0.35 G
response time	about 40mS
life	2.7V,2.5S on, 2.5S off,300,000 cycles

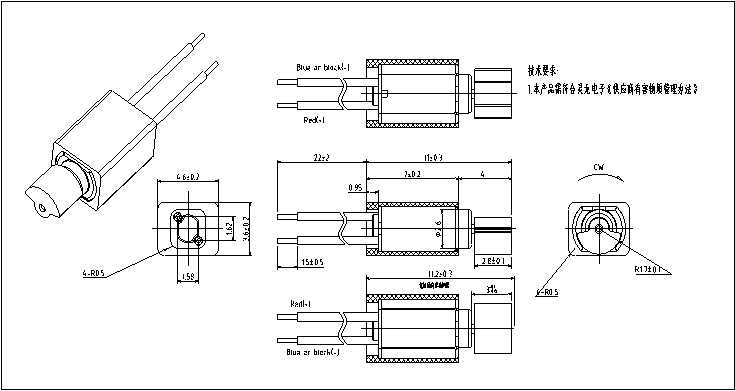

Outline drawing:

Reliability condition:

1.3V, 2.5S on,2.5S off,300000 cycles;

2.low temperature storage test: -40±2℃,96H;

3.high temperature storage test: 80±2℃,96H;

4.humidity exposure: temperature: 60±2℃,humidity:90~95%RH,exposure time:96H.

Refow temperature:

Usage:

This wire connection SMD vibration Motor is used for watch and bracelet, wearable device, medical device, mobile phone, massager,cosmetic.

Our Main Products:

Except this wire connection SMD vibration Motor, we also have the following series:

Certification:

This wire connection SMD vibration Motor is certificated for ISO9001, ISO14001, GBT 28001,QC080000 and RoHS.

Major Customer:

Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...

About US:

Chongqing Linglong Electronic Co., Ltd. is engaged in the development, manufacturing and marketing of micro vibration motor more than 10 years with an annual output of 0.15 billion units and above, including coin motor, SMD motor, linear motor, gear motor and stepper motor.

Linglong has its own independent team for R&D of motor and automation equipment, which enhance to develop new product and lower cost. Also the mature and advanced production lines guarantee large capacity and good quality. We have built a complete system for process, management and sales-service to better serve our clients.

Workshop:

Why choose us?

1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.

2. Technology:Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.

3. Process:Independent D&R team for self-developed and self-made automated production line; unique process and control methods.

4. Service: Professional service window for business, technology and quality.

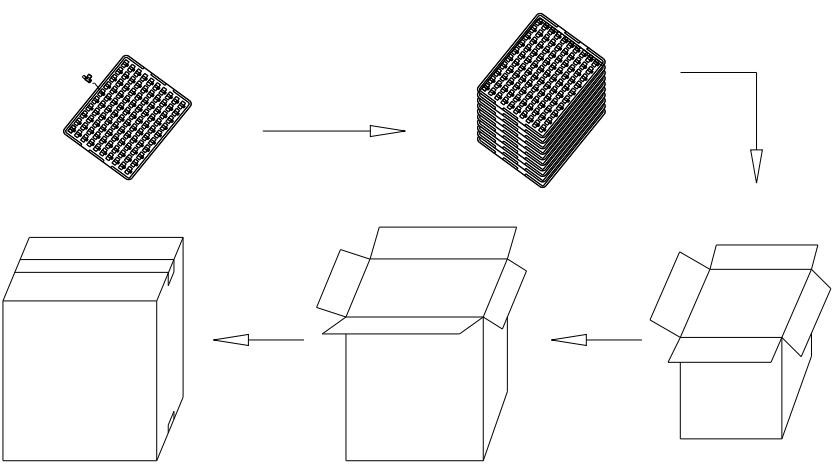

Packaging & Shipping
1. Packaging: 465*280*165mm carton with 3600pcs.
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.

FAQ:
1. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order if sample without problem. You can contact us by anyway, email, skype, wechat, or phone.

2. Do you have MOQ?

We do not have MOQ limit, and accept small quanity order.

3. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.

For more wire connection SMD vibration Motors, please contact us.
